Blackmagic Studio Fiber Converter

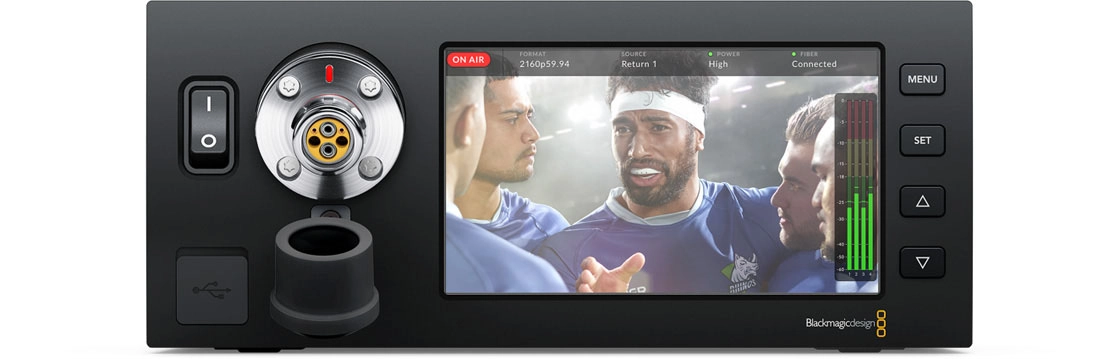

Blackmagic Studio Fiber Converter - product picture

Blackmagic Studio Fiber Converter

Technical Specifications

Description

Work with remote cameras up to 2 km away from your studio or OB truck using industry-standard SMPTE fiber.The Blackmagic Studio Fiber Converter transforms SDI video, audio, and remote camera control into a single optical fiber connection, linking to a Blackmagic Camera Fiber Converter on the remote camera. All signals are transmitted using standard IP video, delivering broadcast-quality Ultra HD with extremely low latency.You get 12G-SDI for an HD or Ultra HD camera feed, plus three independent HD return feeds. Standard connections include camera control, PTZ, tally, two dual-channel talkback intercoms, tracker talkback, and a 5-inch LCD screen for monitoring both camera and return signals.The converter even provides power for your remote cameras and accessories, all through the same SMPTE fiber cable.Blackmagic Studio Fiber Converter — powerful connectivity, up to 2 km away.

Price

3,959.00 USD

Additional information

optical-fiber-input

1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector.

sdi-video-input

3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1.

sdi-video-output

2x 12G SDI for Ultra HD up to 60p.

talkback-audio

SDI Channels 15/16 for Production; Analog in/out via 25-pin connector for Production and Engineering talkback.

balanced-xlr-audio-outputs

4x camera analogue audio outputs.

optical-fiber-outputs

1x Optical I/O via 10 Gb-E (not active).

computer-interface

1x USB-C.

hd-video-standards

720p50, 59.94, 60; 1080p23.98–60; 1080PsF23.98–30; 1080i50, 59.94, 60

ultra-hd-video-standards

2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

sdi-compliance

SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M

audio-sampling

48kHz, 24‑bit A/D conversion

video-sampling

4:2:2

color-precision

10-bit

color-space

REC 709, REC 2020.

multiple-rate-support

SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.

software-included

Camera Utility for firmware update.

operating-systems

Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 and 11.

power-supply

100–240V AC input.

operating-temperature

0° to 40° C (32° to 104° F)

storage-temperature

-20° to 45° C (-4° to 113° F)

relative-humidity

0% to 90% non-condensing

whats-included

Blackmagic Studio Fiber Converter; Welcome wallet with QR code for software download.
