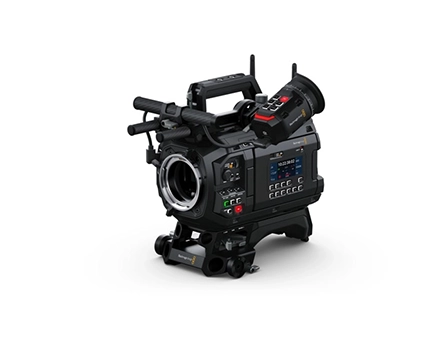

Blackmagic URSA Cine 17K 65—large-format 17520×8040 65mm RGBW sensor with larger photo-sites delivering 16 stops of dynamic range. Features interchangeable lens mounts, dedicated assist station with secondary 5″ HDR touchscreen, industry-standard Lemo and Fischer connections, built-in 8TB removable high-performance media, high-speed 10G Ethernet, WiFi for Blackmagic Cloud sync, and URSA Cine EVF.
26,945.00 USD
| sensor | 65mm format, 50.81 × 23.32 mm effective size, 2.9μm pixel pitch |
|---|---|
| dynamic-range | 16 stops |
| lens-mounts | PL (interchangeable with LPL, EF, and HC) |
| lens-control | Electronic data and control for PL/LPL/EF compatible lenses |
| supported-resolutions | 17K (17,520 × 8,040, 16,128 × 8,040, 15,360 × 8,040, etc.); 12K (12,288 × 8,040, 12,288 × 6,912, 12,288 × 6,480, etc.); 8K (8192 × 5360, 8192 × 4608, 8192 × 4320, 8192 × 3408); 4K (4096 × 2680, 4096 × 2304, 4096 × 2160, 4096 × 1704) |
| frame-rates | Project: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps; High-speed: 60 fps (17K), 90 fps (12K), 100 fps (8K open gate), 170 fps (8K 2.4:1) |
| focus | Peaking and autofocus with compatible lenses |
| iris | Manual wheel, touchscreen slider, and instant auto-iris |
| exposure | Scene average auto exposure (video mode) |
| monitoring | Dual 5″ 1920×1080 HDR LCD (1500 nits); Status Screen; OLED EVF 1920×1080 (6.22M dots, diopter −5 to +5); Tally indicators |
| metadata-controls | Auto lens data (i/Technology, EF, HC); Slate metadata (project, scene, take, notes); 7 assignable keys + 6 EVF shortcut keys; Timecode (<1 frame drift per 8 hours) |
| connections | Video Outputs: 2 × SDI (1.5G, 3G, 6G, 12G); Audio: 2 × XLR + 3.5mm headphone; Reference: Tri-Sync/Black Burst + Timecode; USB-C monitor ports; 7-pin Lemo; 3-pin Fischer; Dual USB-C; Ethernet 10G |
| audio | Integrated stereo microphone; Built-in mono speaker |
| standards | HD: 1080p23.98–60, 1080i50–60; Ultra HD: 2160p23.98–60; Compliance: SMPTE 292M, 424B, 2081-1, 2082-1; Audio: 48 kHz, 24-bit SDI |
| media-codecs | Storage: 1 × Blackmagic Media Module (8TB); Formats: BRAW (3:1–18:1, Q0–Q5), H.264 proxies (1080p); Rates: up to 1,700 MB/s; Simultaneous recording: RAW + Proxy |
| control-streaming | External Control: Ethernet (REST API), WiFi, Bluetooth, Lemo/Fischer run/stop, iPad app; Streaming: SRT, RTMP; Network: NTP, FTP, Web Media Manager, SMB |
| power | Input: 24V DC PSU, 8-pin Lemo, B-Mount plate; Output: 7-pin Lemo, 3-pin Fischer (+24V), 2-pin regulated +12V; Battery Plates: B-Mount, V-Lock, Gold Mount |
| software | Blackmagic OS; DaVinci Resolve Studio (included); Camera Setup, RAW Player, QuickLook plugin, RAW SDK |
| environmental | Operating: 0° to 40°C; Storage: −20° to 45°C; Humidity: 0–90% non-condensing |
| whats-included | URSA Cine 17K 65 with PL mount; Media Module 8TB + case; Cine Handle, Top Rod Mount, Baseplate 19, Battery Plate B-Mount; WiFi antennas, rubber caps, PSU, PL & LPL caps; Cine EVF + rotating bracket, mounts, carbon fiber rods, USB cables, eyecup, chamois; 5″ LCD sunshade, Cine EVF accessories; DaVinci Resolve Studio key; Stickers, welcome wallet, Pelican 1560 case |
