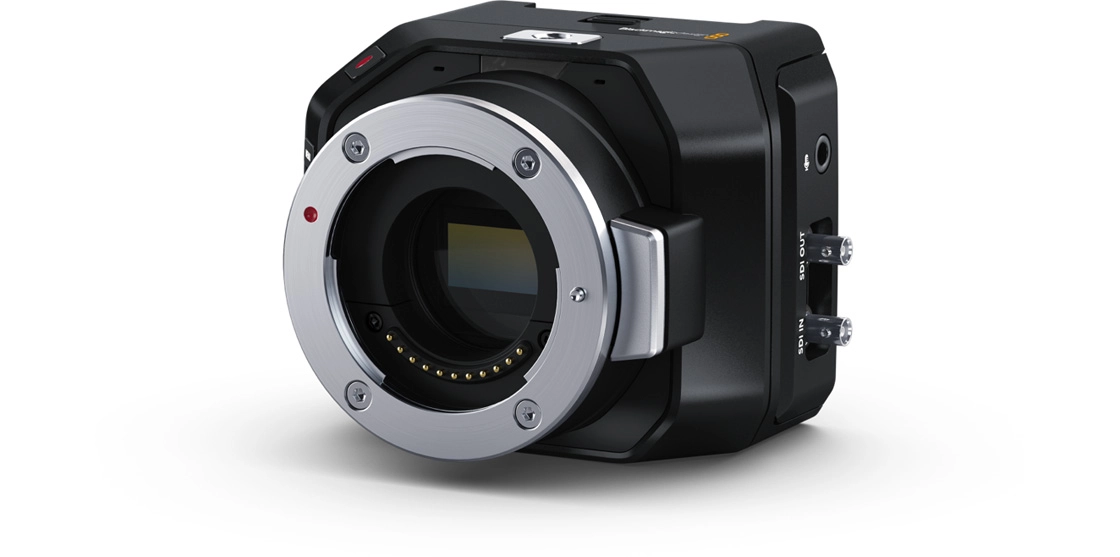

The Blackmagic Micro Studio Camera 4K G2 is a broadcast-quality live production camera packed into an incredibly compact design.Its Four Thirds sensor delivers 13 stops of dynamic range, outstanding low-light performance, and stunning Ultra HD images in any environment. With 12G-SDI Micro BNC connectors, you get 10-bit uncompressed video up to 2160p60 and 2-channel audio output. The input supports tally, full camera control, built-in color correction, and lens control directly from an ATEM switcher.When paired with an ATEM Mini, the HDMI output delivers 1080 video with complete control features. And beyond live production, it doubles as a Hollywood-quality cinema camera, capable of recording Blackmagic RAW to external USB-C drives.With multiple mounting points, the Micro Studio Camera 4K G2 can be placed where no other camera can go — bringing cinematic performance to even the most challenging spaces.
1,095.00 USD
| effective-sensor-size | 17.78mm x 10mm (Four Thirds) |
|---|---|
| lens-mount | Active MFT Mount. |
| lens-control | Iris, focus, zoom on supported lenses. |
| dynamic-range | 13 Stops. |
| dual-native-iso | 0dB and 18dB gain. |
| sensitivity-at-0db-gain | f11 with 2160p59.94; f12 with 2160p50; at 2,000 lux with 89.9% reflectance. |
| signal-to-noise-ratio | 63dB for 2160p. |
| shooting-resolutions | 3840 x 2160 (Ultra HD) up to 60 fps. |
| frame-rates | 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps; Off-speed frame rates up to 60 fps in Ultra HD. |
| focus | Auto focus available using compatible lenses. |
| metadata-support | Auto lens data from electronic MFT lenses; auto recording of camera settings, motion sensor data, slate data; 3D LUT embedding in Blackmagic RAW metadata. |
| mounting-options | 1 x 1/4 inch (top), 3 x 1/4 inch (bottom). |
| sdi-video-inputs | 1 x 12G‑SDI Micro BNC |
| sdi-video-outputs | 1 x 12G‑SDI Micro BNC |
| sdi-rates | 3G, 6G, 12G |
| hdmi-2-0-video-outputs | 1 |
| hdmi-video-outputs | 1 x HDMI Type A output (always HD, up to 1080p60). |
| analog-audio-input | 1 x 3.5mm Stereo Input (can also be used for Timecode). |
| reference-inputs | Program SDI Input on camera. |
| sdi-audio-output | 2 channels program audio embedded in 3G/6G/12G-SDI. |
| hdmi-audio-outputs | 2 channels 48 kHz 24‑bit. |
| remote-control | Over SDI, HDMI or USB Ethernet with adapter. |
| computer-interface | 1 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s). Software updates via USB‑C. |
| sd-video-standards | None |
| hd-video-standards | 1080p23.98–60; 1080i50, 1080i59.94, 1080i60 |
| ultra-hd-video-standards | 2160p23.98–60 |
| sdi-compliance | SMPTE 292M, 424M, 425M A/B, 2081‑1/10, 2082‑1/10 |
| sdi-audio-sampling | 48 kHz, 24‑bit |
| media | 1 x USB-C 3.1 Gen 1 expansion port for external Blackmagic RAW recording. |
| media-format | ExFAT (Windows/Mac) or HFS+ (Mac). |
| supported-codecs | Blackmagic RAW 3:1, 5:1, 8:1, 12:1; Q0, Q1, Q3, Q5. |
| storage-type | 1 x USB‑C 3.1 Gen 1 expansion port. |
| recording-formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 in Ultra HD 3840×2160. |
| storage-rates | 3:1 – 127 MB/s; 5:1 – 77 MB/s; 8:1 – 48 MB/s; 12:1 – 32 MB/s; Q0 – 96–190 MB/s; Q1 – 64–153 MB/s; Q3 – 43–109 MB/s; Q5 – 26–64 MB/s (subject dependent). |
| control | 5 buttons: Set, Up, Down, Menu, Power. |
| external-control | Blackmagic Zoom/Focus Demand; Control Protocol over SDI/HDMI with ATEM switcher; Camera Control REST API over USB Ethernet. |
| ntp | Sync camera time with network NTP server. |
| web-media-manager | Access/download/delete files over Ethernet browser. |
| ftp | Download from attached drive via FTP. |
| smb | File sharing via SMB. |
| color-corrector | DaVinci YRGB |
| live-tally-indicator | 1 x front facing for talent. |
| software-included | Blackmagic Camera Setup for Mac and Windows. |
| operating-systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 and 11. |
| power-supply | 1 x External 12V DC 36W. |
| power-inputs | 1 x 12V DC locking 5.5 mm barrel connector. |
| power-usage | 18–25 W. |
| optional-accessories | Blackmagic PYXIS Monitor; Blackmagic Focus Demand; Blackmagic Zoom Demand; ATEM Mini/SDI/Television Studio/Constellation switchers; Blackmagic Video Assist; LP-E6 Battery; Micro BNC Cables. |
| operating-temperature | 0° to 40° C (32° to 104° F) |
| storage-temperature | -20° to 45° C (-4° to 113° F) |
| relative-humidity | 0% to 90% non-condensing |
| whats-included | Blackmagic Micro Studio Camera 4K G2; Turret dust cap; External 12V DC power supply with adapters; Welcome wallet with QR code for software download. |
