Blackmagic PYXIS Monitor Kit

Name: Blackmagic PYXIS Monitor Kit - Farabak
Price: 495.00 USD
Availability: InStock

Technical Specifications

Description

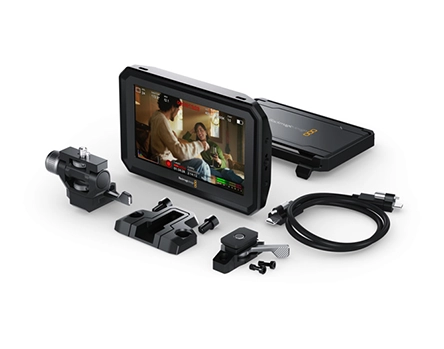

Blackmagic PYXIS Monitor is a versatile 5-inch HDR touchscreen with full camera control, designed to mount almost anywhere.The PYXIS Monitor Kit includes the monitor, a foldable sunshade, locking USB cable, and PYXIS mounts for seamless attachment to Blackmagic PYXIS and Blackmagic URSA Cine cameras.With its precision dovetail design, the PYXIS mount allows the monitor to be attached or removed in seconds. No tools required — just effortless positioning wherever it’s needed.

Price

495.00 USD

Category: Professional Cameras Brand: Blackmagic Design

Additional information

connections	USB-C with locking connector for video, power, data, and updates
display-size	5 inch
display-resolution	1920 x 1080
display-type	LCD capacitive touchscreen
display-brightness	1500 nits
frame-rates	Up to 60 fps
tally	Rear-facing LED tally light
accelerometer	Auto image rotation when inverted
on-screen-controls	Tap to adjust overlays, frame rate, shutter, iris, timecode, ISO, WB, tint, power, record, media, audio, focus zoom, slate, menus
button-controls	F1–F3 assignable function buttons
function-button-presets	FPS, Iris, WB, ISO, Shutter
function-button-toggles	Clean feed, status text, LUT, frame guides, focus assist, false color, zebra, grid, safe area, off-speed rec, focus zoom, focus, record, AWB, color bars, playback, false color+zebra, OIS, stream, still
mounting-points	1x 1/4-20 (ARRI) + 2x M4 bottom; 1x 1/4-20 (ARRI) + 2x M4 side
mounting-brackets	Swivel mount, fixed mount, dovetail shoe (all included)
compatible-cameras	PYXIS 6K (EF/PL), URSA Cine 12K LF, URSA Cine 17K 65
operating-systems	MacOS Ventura 13+, Sonoma 14+, Windows 10/11
power-requirements	Powered via USB-C
environmental	Operating 0–40°C, Storage -20–60°C, Humidity 0–90%
whats-included	PYXIS Monitor, clip-on sunshade, swivel mount, fixed mount + screws, dovetail shoe + screws, USB-C viewfinder cable, wallet with QR, sticker
