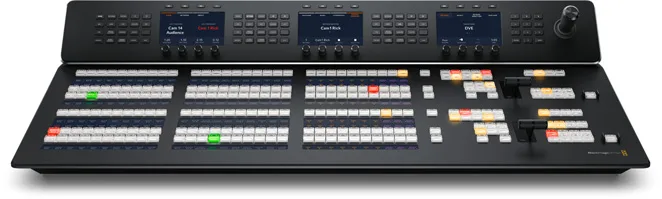

ATEM 2 M/E Advanced Panel 30

Name: ATEM 2 M/E Advanced Panel 30 - Farabak
Price: 9365.00 USD
Availability: InStock

Technical Specifications

Description

The ATEM 2 M/E Advanced Panel features 2 M/E rows with 30 input buttons each, plus 3 independent system control LCDs per row. Each row can control up to 4 M/Es on larger switchers, with every row and input button including customizable LCD labels for absolute clarity. Each row also has its own independent select bus, giving you fast, flexible control in any production. ATEM 2 M/E Advanced Panel — streamlined design, powerful multi-M/E control.

Price

9,365.00 USD

Category: ATEM Production Switchers Brand: Blackmagic Design

Additional information

connections	Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
software-updates	1 x USB-C for firmware updates.
number-of-mix-effects-rows	2
direct-cross-points	30
shifted-cross-points	60
crosspoint-label	6 rows 24 character LCD
on-air-indicator	12
power-status-indicators	None
dsk-transition-selectors	4 x Auto, Cut, Tie/Preview
preview-transition	2
lcd-menu-displays	3
menu-control	3 x 20 buttons
dedicated-macro-buttons	2 x 30
transport-control-buttons	8
destination-bus	2
source-select-bus	2
fader-bar	2 3 Axis Joystick 1
numeric-keypad	1
software-applications	ATEM Software Control Panel.
operating-systems	Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
input-voltage	2 x Internal 100 – 240V AC.
redundant-power	Yes
power-usage	120W
operating-temperature	0° to 40° C (32° to 104° F)
storage-temperature	-20° to 60° C (-4° to 140° F)
relative-humidity	Up to 95%
whats-included	ATEM 2 M/E Advanced Panel 30 Welcome wallet with QR code for software download
