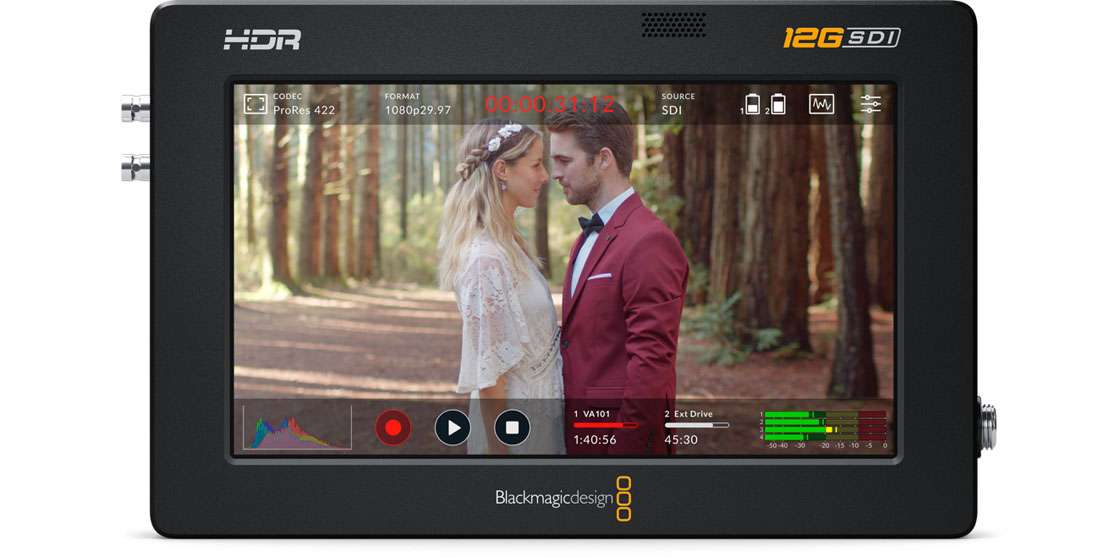

The Blackmagic Video Assist 5" 12G HDR adds advanced monitoring and professional recording to any SDI or HDMI camera, supporting all HD, Ultra HD, 2K, and 4K DCI formats.Its compact 5-inch HDR display delivers 2500 nits of brightness, making it easy to see in any environment. With support for 3D LUTs, professional scopes, focus assist, and exposure tools, you get everything you need to frame, focus, and expose shots with confidence.The built-in SD card recorder captures broadcast-quality 10-bit 4:2:2 ProRes or DNx files. And because the files are industry-standard, you can start editing right away — no conversion required.Blackmagic Video Assist 5" 12G HDR — powerful monitoring and recording in a perfectly compact design.
685.00 USD
| sdi-video-inputs | 1 x Micro BNC |
|---|---|
| sdi-video-outputs | 1 x Micro BNC |
| sdi-rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| hdmi-2-0a-video-inputs | 1 |
| hdmi-2-0a-video-outputs | 1 |
| analog-audio-inputs | None, embedded audio only. |
| analog-audio-outputs | 1 x 3.5 mm headphone jack. |
| built-in-speaker | Mono |
| screen-dimensions | 5 inch 1920 x 1080. |
| screen-brightness | 2500 nits |
| screen-color | P3 wide color gamut |
| sdi-audio-inputs | 16 channels embedded via 12G-SDI |
| sdi-audio-outputs | 16 channels embedded via 12G-SDI |
| hdmi-audio-inputs | 8 channels embedded via HDMI 2.0a |
| hdmi-audio-outputs | 8 channels embedded via HDMI 2.0a |
| remote-control | None |
| sd-interface | 1 x UHS-II SD slot. |
| storage-type | Removable SDXC/SDHC UHS-I/UHS-II cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50, SDR104. |
| computer-interface | 1 x USB-C 3.1 Gen 1 for external drive recording, webcam out, setup, updates, Video Assist Utility. |
| sdi-video-standards | SD: 525i59.94 NTSC, 625i50 PAL; HD: 720p50–60, 1080p23.98–60, 1080PsF23.98–30, 1080i50–60; 2K DCI: 23.98–30p/PsF; UHD: 2160p23.98–60; 4K DCI: 23.98–30p |
| sdi-compliance | SMPTE 259M, 292M, 296M, 425M, 2084 |
| sdi-metadata-support | HD RP188 |
| audio-sampling | 48 kHz, 24-bit |
| video-sampling | 4:2:2 YUV |
| color-precision | 10-bit |
| color-space | REC 601, REC 709, REC 2020 |
| hdr-support | HDR10, HLG |
| multiple-rate-support | SDI/HDMI auto-switch between 270 Mb/s–12 Gb/s |
| sdi-raw | Blackmagic RAW |
| hdmi-video-standards | SD: 525i59.94 NTSC, 625i50 PAL; HD: 720p50–60, 1080p23.98–60, 1080i50–60; UHD: 2160p23.98–60; 4K DCI: 23.98–25p |
| hdmi-color-precision | 10-bit |
| hdr-support-hdmi | HDR10, HLG |
| copy-protection | HDMI input cannot capture from copy-protected sources. |
| media | 1 x UHS-II SD slot; USB-C external drive recording. |
| media-type | SDXC UHS-II, SDXC UHS-I, SDHC UHS-I. |
| supported-codecs | BRAW 3:1, 5:1, 8:1, 12:1, Q0, Q5; ProRes 422 HQ/422/LT/Proxy; DNxHR HQX/SQ/LB; DNxHR MXF variants. |
| recorder-control | Integrated touchscreen LCD with Blackmagic OS. |
| external-control | SDI/HDMI start/stop and timecode run. |
| blackmagic-raw-supported-cameras | Canon EOS C300 Mk II; FUJIFILM GFX100 series, X series; Leica SL2-S; Nikon Z6/Z7 series; Panasonic EVA1, AW-UB10/50, LUMIX BGH1, BS1H, GH5S, GH6, GH7, G9II, S1/S1II/S1IIE/S1H/S1RII, S5/S5D/S5II/S5IIX; SIGMA fp/fp L; Z CAM E2 series. |
| software-included | Blackmagic OS |
| scopes | Waveform, RGB Parade, Vector, RGB Histogram; PiP/overlay modes, HDR graticules. |
| operating-systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 11 |
| power-supply | 1 x External 12V supply; NP-F style batteries supported (not included). |
| operating-temperature | 0–40° C (32–104° F) |
| storage-temperature | -20–45° C (-4–113° F) |
| relative-humidity | 0%–90% non-condensing |
| whats-included | Blackmagic Video Assist 5” 12G HDR; universal PSU with locking connector & adapters; NP-F battery USB charger. |
