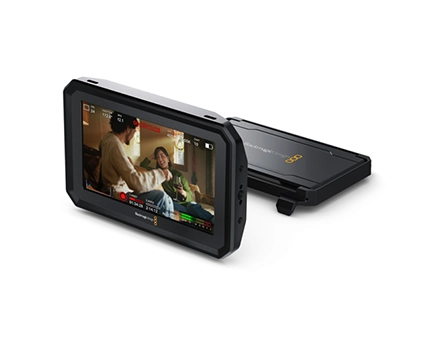

Blackmagic PYXIS Monitor is a versatile 5-inch HDR touchscreen with full camera control, designed to mount almost anywhere.It’s the perfect solution when rigging or accessories block the internal display of Blackmagic PYXIS, giving you an additional monitoring and control option wherever you need it. The ultra-bright 1500-nit display ensures clear visibility even in direct sunlight, and comes with a removable sunshade that folds to protect the screen.Setup is effortless. A single USB-C connection delivers video, power, and camera control — everything you need, in one simple cable.
325.00 USD
| connections | USB-C with locking connector for video, power, data, and updates |
|---|---|
| display-size | 5 inch |
| display-resolution | 1920 x 1080 |
| display-type | LCD capacitive touchscreen |
| display-brightness | 1500 nits |
| frame-rates | Up to 60 fps |
| tally | Rear-facing LED tally light |
| accelerometer | Auto image rotation when inverted |
| on-screen-controls | Tap to adjust overlays, frame rate, shutter, iris, timecode, ISO, WB, tint, power, record, media, audio, focus zoom, slate, menus |
| button-controls | F1–F3 assignable function buttons |
| function-button-presets | FPS, Iris, WB, ISO, Shutter |
| function-button-toggles | Clean feed, status text, LUT, frame guides, focus assist, false color, zebra, grid, safe area, off-speed rec, focus zoom, focus, record, AWB, color bars, playback, false color+zebra, OIS, stream, still |
| mounting-points | 1x 1/4-20 (ARRI) + 2x M4 bottom; 1x 1/4-20 (ARRI) + 2x M4 side |
| compatible-cameras | PYXIS 6K (EF/PL), URSA Cine 12K LF, URSA Cine 17K 65 |
| operating-systems | MacOS Ventura 13+, Sonoma 14+, Windows 10/11 |
| power-requirements | Powered via USB-C |
| environmental | Operating 0–40°C, Storage -20–60°C, Humidity 0–90% |
| whats-included | PYXIS Monitor, clip-on sunshade, wallet with QR, sticker |
