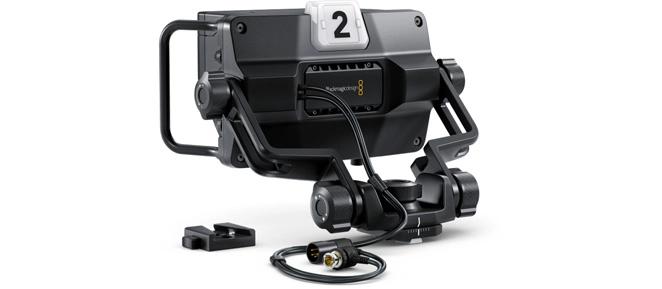

Whether you’re in the studio or covering a live event in a stadium, the URSA Studio Viewfinder G2 gives you everything you need to operate your URSA Mini with comfort and precision.Its bright 7-inch display features a detachable sunshade for outdoor use, while large handles and an articulated pivot mount let you position and move the viewfinder independently of the camera.With rotary control dials and customizable function buttons, you can make real-time adjustments without ever looking away from the action. Setup is fast with the included V-Lock plate, and the viewfinder connects directly to your URSA Mini’s SDI monitor and power output — no extra cables or power supplies required.URSA Studio Viewfinder G2 is designed for live production that demands speed, clarity, and total control.
1,669.00 USD
| connections-sdi-video-input | 1 x BNC |
|---|---|
| connections-sdi-rates | 1.5G, 3G |
| connections-power-input | 1 x 4 pin XLR 12V |
| connections-screen-dimensions | 7" 1920 x 1200 resolution |
| connections-screen-type | 7" high brightness TFT LCD |
| connections-screen-brightness | 2000 nits |
| connections-computer-interface | 1 x USB Type‑C for initial setup and software updates via Blackmagic Camera Setup |
| sdi-video-standards-hd-format-support | 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080i50, 1080i59.94, 1080i60 |
| sdi-video-standards-sdi-compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084 |
| sdi-video-standards-video-sampling | 4:2:2 YUV |
| sdi-video-standards-color-precision | 10‑bit |
| sdi-video-standards-color-space | REC 601, REC 709 |
| sdi-video-standards-multiple-rate-support | SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD |
| monitor-features-controls | Dial, knobs and customizable function buttons for settings, shortcut features and navigating menus |
| monitor-features-handles | Built‑in grab handles for positioning the monitor independently from the camera |
| monitor-features-position-adjustment-options | Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments |
| monitor-features-mounting-options | Quick release V‑lock mounting bracket for attaching viewfinder to URSA Mini handle |
| monitor-features-tally | Large LED tally light with customizable perspex camera numbers |
| monitor-features-metadata-support | Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more |
| monitor-features-screen-interface | On‑screen meters and status information including Camera ID, resolution, fps, shutter speed, gain, white balance, battery level, and more |
| operating-systems-mac | macOS 13 Ventura, macOS 14 Sonoma or later |
| operating-systems-windows | Windows 10 and 11 |
| power-requirements | 12V power input via 4‑pin XLR connected via URSA Mini 12V power output |
| environmental-specifications-operating-temperature | 0° to 40° C (32° to 104° F) |
| environmental-specifications-storage-temperature | -20° to 60° C (-4° to 140° F) |
| environmental-specifications-relative-humidity | 0% to 90% non‑condensing |
| whats-included | Blackmagic URSA Studio Viewfinder G2 |
