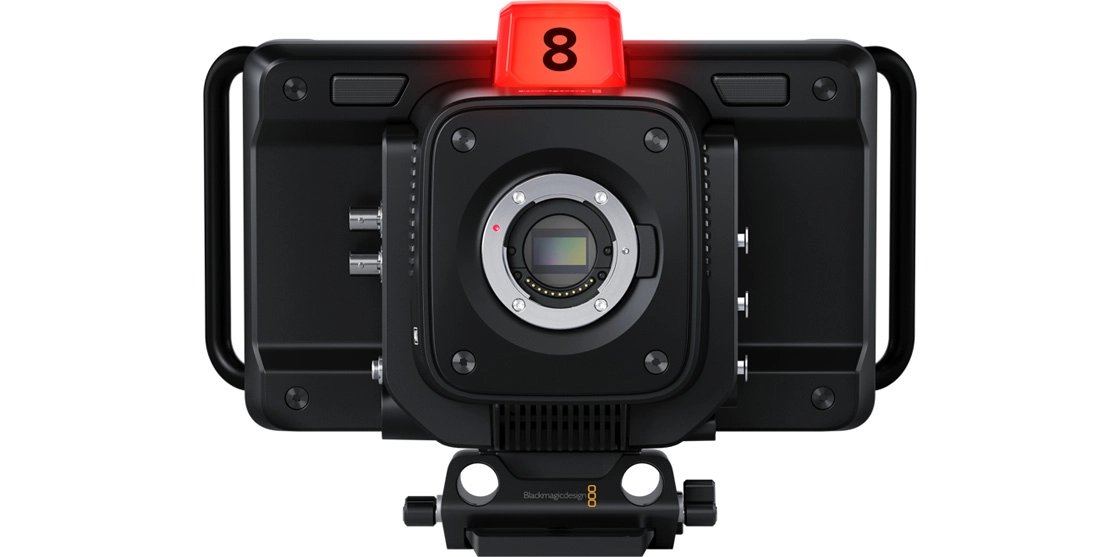

Designed for powerful SDI workflows, the Blackmagic Studio Camera 4K Pro G2 adds professional 12G-SDI and 10G Ethernet connections — perfect when your camera needs to be positioned far from the switcher.It features a 12G-SDI output and a 12G-SDI program return input with camera control, talkback, and tally built right in. You also get the same advanced HDMI output with full control features.With 10G Ethernet, all signals and power can run through a single cable, delivering a SMPTE-style workflow at a fraction of the cost.Blackmagic Studio Camera 4K Pro G2 — professional connectivity for modern live production.
2,055.00 USD
| effective-sensor-size | 17.78mm x 10mm (Four Thirds) |
|---|---|
| lens-mount | Active MFT Mount. |
| lens-control | Iris, focus, zoom on supported lenses. |
| dynamic-range | 13 Stops. |
| dual-native-iso | 0dB and 18dB gain. |
| sensitivity-at-0db-gain | f11 with 2160p59.94. |
| signal-to-noise-ratio | 63dB for 2160p. |
| shooting-resolutions | 3840 x 2160 (Ultra HD) up to 60 fps. |
| frame-rates | 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. |
| off-speed-frame-rates | Off-speed frame rates up to 60 fps in Ultra HD. |
| focus | Auto focus available using compatible lenses. |
| screen-dimensions | 7 inch 1920 x 1200 |
| screen-type | LCD capacitive touchscreen. |
| screen-brightness | 2000 nits |
| controls | Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials. |
| mounting-options | 2 x 1/4 inch tripod mount. |
| sdi-video-inputs | 1 |
| sdi-video-outputs | 1 |
| sdi-rates | 1.5G, 3G, 6G, 12G. |
| hdmi-2-0-video-outputs | 1 |
| analog-audio-input | 2 x XLR analog switchable between mic and line levels. Phantom power support. |
| analog-audio-output | 1 x 5-pin XLR for talkback headset. |
| reference-inputs | Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. |
| sdi-audio-output | 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16 |
| remote-control | Remote camera control over SDI, HDMI or Ethernet. |
| ethernet | 10Gb/s |
| computer-interface | 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A. |
| microphone | Integrated stereo microphone. |
| built-in-speaker | 1 x mono speaker. |
| direct-streaming | Blackmagic Studio Camera 4K Pro G2 supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C. |
| streaming-platforms | ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo. |
| sd-video-standards | None |
| hd-video-standards | 1080i50, 1080i59.94, 1080i60 |
| ultra-hd-video-standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| sdi-compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
| sdi-audio-sampling | Television standard sample rate of 48 kHz and 24‑bit. |
| hdmi-audio-sampling | Television standard sample rate of 48 kHz and 24‑bit. |
| media | 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
| media-format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| supported-codecs | Blackmagic RAW Constant Bitrate 3:1 |
| storage-type | 2 x USB‑C 3.1 Gen 1 expansion ports for external media. |
| recording-formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate. |
| storage-rates | Storage rates based on 30 frames per second. 3840 x 2160 (Ultra HD) Blackmagic RAW 3:1 – 127 MB/s |
| external-control | Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port. Camera Control REST API over Ethernet or USB Ethernet for external control via HTTP when used with REST client applications such as Postman. |
| ntp | Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. |
| web-media-manager | Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. |
| ftp | Download files from any drive attached to your camera using FTP. |
| smb | File sharing using SMB |
| color-corrector | DaVinci YRGB |
| live-tally-indicator | 1 x front facing for talent, 1 x rear facing for operator. |
| talkback | SDI Channels 15 and 16. |
| software-included | Blackmagic Camera Setup for Mac and Windows. |
| operating-systems | Mac 13.0 Ventura, Windows 10 and 11. |
| power-supply | 1 x External 12V DC 60W power supply. |
| power-inputs | 1 x 12V DC locking 5.5 mm barrel connector. 1 x 12V DC 4 pin XLR input for external power supply or battery use. 1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies. |
| power-usage | 26 ‑ 40 W using DC input. 30 ‑ 46 W using PoE input. |
| optional-accessories | Blackmagic Focus Demand Blackmagic Zoom Demand Blackmagic Studio Converter ATEM Mini switchers ATEM Television Studio Pro switchers Blackmagic 3G‑SDI Shield for Arduino |
| operating-temperature | 0° to 40° C (32° to 104° F) |
| storage-temperature | -20° to 45° C (-4° to 113° F) |
| relative-humidity | 0% to 90% non-condensing |
| whats-included | Blackmagic Studio Camera 4K Pro G2 Blackmagic Studio Camera Sun Shade Tripod Mount compatible with 15mm lightweight rails Turret Dust Cap External 12V DC power supply with locking connector and international sockets adapters for most countries. |
