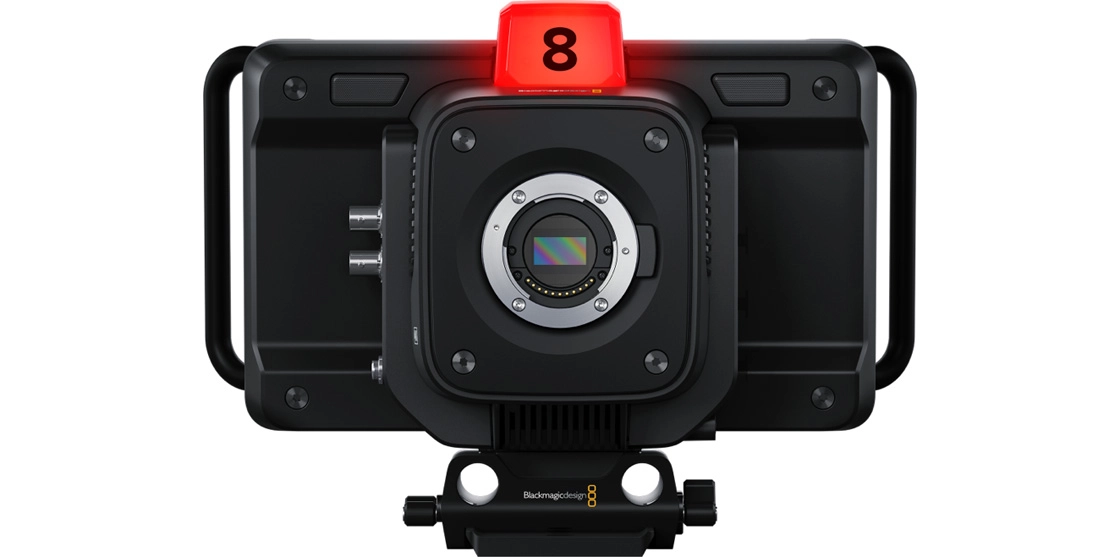

The Blackmagic Studio Camera 4K Plus G2 delivers the power of a full-size studio camera in a compact, portable design.With digital film camera dynamic range and advanced color science, it produces cinematic images even in the most challenging lighting conditions. The sensor supports ISO up to 25,600, so you can capture stunning results in dimly lit venues — even under moonlight.Professional features include tally, camera control, a built-in color corrector, and Blackmagic RAW recording directly to USB disks. You can even add focus and zoom demand for complete lens control.Blackmagic Studio Camera 4K Plus G2 — big studio power, perfectly miniaturized.
1,485.00 USD
| effective-sensor-size | 17.78mm x 10mm (Four Thirds) |
|---|---|
| lens-mount | Active MFT Mount. |
| lens-control | Iris, focus, zoom on supported lenses. |
| dynamic-range | 13 Stops. |
| dual-native-iso | 0dB and 18dB gain. |
| sensitivity-at-0db-gain | f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
| signal-to-noise-ratio | 63dB for 2160p. |
| shooting-resolutions | 3840 x 2160 (Ultra HD) up to 60 fps. |
| frame-rates | 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps. Off-speed frame rates up to 60 fps in Ultra HD. |
| focus | Auto focus available using compatible lenses. |
| screen-dimensions | 7 inch 1920 x 1200 |
| screen-type | LCD capacitive touchscreen. |
| screen-brightness | 600 nits |
| controls | Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials. |
| mounting-options | 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount. |
| sdi-video-inputs | 1 |
| sdi-video-outputs | 1 |
| sdi-rates | 1.5G, 3G, 6G, 12G. |
| hdmi-2-0-video-outputs | 1 |
| analog-audio-input | 1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
| analog-audio-output | 1 x 3.5mm TRRS mini jack for headphones with mic. |
| reference-input | Program SDI Input on camera. |
| sdi-audio-output | 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI; 2 talkback channels on 15 and 16. |
| remote-control | Remote camera control over SDI, HDMI or USB Ethernet. |
| computer-interface | 2 x USB Type-C 3.1 Gen 1 (up to 5Gb/s) for external recording and focus/zoom demand connection. Software updates via USB-C Port A. |
| microphone | Integrated stereo microphone. |
| built-in-speaker | 1 x mono speaker. |
| sd-video-standards | None |
| hd-video-standards | 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| ultra-hd-video-standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| sdi-compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 |
| sdi-audio-sampling | 48 kHz, 24-bit (television standard). |
| hdmi-audio-sampling | 48 kHz, 24-bit (television standard). |
| media | 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
| media-format | ExFAT (Windows/Mac) or HFS+ (Mac). |
| supported-codecs | Blackmagic RAW Constant Bitrate 3:1, 5:1, 8:1, 12:1; Blackmagic RAW Constant Quality Q0, Q1, Q3, Q5. |
| storage-type | 2 x USB-C 3.1 Gen 1 expansion ports for external media. |
| recording-formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 in Ultra HD 3840 x 2160 at the selected frame rate. |
| storage-rates-ultra-hd-3840x2160-30fps | 3:1 – 127 MB/s; 5:1 – 77 MB/s; 8:1 – 48 MB/s; 12:1 – 32 MB/s; Q0 – 96 to 190 MB/s; Q1 – 64 to 153 MB/s; Q3 – 43 to 109 MB/s; Q5 – 26 to 64 MB/s. (Indicative; subject dependent). |
| external-control | Blackmagic Zoom Demand & Focus Demand; Blackmagic Control Protocol over SDI/HDMI with compatible ATEM; control of settings, focus, iris, zoom, color corrector, tally; record start/stop to external media via USB. |
| camera-control-rest-api | Control over USB Ethernet via HTTP (e.g., Postman). |
| ntp | Sync camera time with any NTP server on network. |
| web-media-manager | Browser over Ethernet to access, browse, download and delete files from attached drives. |
| ftp | Download files from any attached drive using FTP. |
| smb | File sharing using SMB. |
| color-corrector | DaVinci YRGB |
| live-tally-indicator | 1 x front facing (talent), 1 x rear facing (operator). |
| talkback | SDI Channels 15 and 16. |
| software-included | Blackmagic Camera Setup for Mac and Windows. |
| operating-systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 and 11. |
| power-supply | 1 x External 12V DC 60W power supply. |
| power-inputs | 1 x 12V DC locking 5.5 mm barrel connector. |
| power-usage | 15–22 W. |
| optional-accessories | Blackmagic Focus Demand; Blackmagic Zoom Demand; ATEM Mini switchers; ATEM Television Studio HD and HD Pro switchers. |
| operating-temperature | 0° to 40° C (32° to 104° F) |
| storage-temperature | -20° to 45° C (-4° to 113° F) |
| relative-humidity | 0% to 90% non-condensing |
| whats-included | Blackmagic Studio Camera 4K Plus G2; Blackmagic Studio Camera Sun Shade; Tripod Mount compatible with 15mm lightweight rails; Turret Dust Cap; External 12V DC power supply with locking connector and international socket adapters. |
