Blackmagic PYXIS Monitor EVF Kit

Name: Blackmagic PYXIS Monitor EVF Kit - Farabak
Price: 715.00 USD
Availability: InStock

Technical Specifications

Description

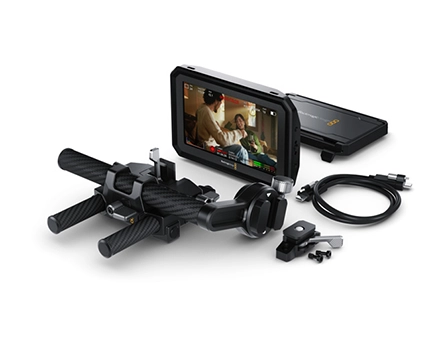

Blackmagic PYXIS Monitor is a versatile 5-inch HDR touchscreen with full camera control, designed to mount almost anywhere.The PYXIS Monitor EVF Kit includes the monitor, a foldable sunshade, locking USB cable, PYXIS mounts, and URSA Cine EVF mounts — everything you need to seamlessly attach it to Blackmagic PYXIS or Blackmagic URSA Cine cameras.With the complete kit, PYXIS Monitor transforms into a powerful electronic viewfinder, ready for any production environment.

Price

715.00 USD

Category: Professional Cameras Brand: Blackmagic Design

Additional information

connections	USB-C with locking connector for video, power, data, and updates
display-size	5 inch
display-resolution	1920 x 1080
display-type	LCD capacitive touchscreen
display-brightness	1500 nits
frame-rates	Up to 60 fps
tally	Rear-facing LED tally light
accelerometer	Auto image rotation when inverted
on-screen-controls	Tap to adjust overlays, frame rate, shutter, iris, timecode, ISO, WB, tint, power, record, media, audio, focus zoom, slate, menus
button-controls	F1–F3 assignable function buttons
function-button-presets	FPS, Iris, WB, ISO, Shutter
function-button-toggles	Clean feed, status text, LUT, frame guides, focus assist, false color, zebra, grid, safe area, off-speed rec, focus zoom, focus, record, AWB, color bars, playback, false color+zebra, OIS, stream, still
mounting-points	1x 1/4-20 (ARRI), 2x M4 bottom; 1x 1/4-20 (ARRI), 2x M4 side
mounting-brackets	Swivel mount, fixed mount, dovetail shoe, URSA Cine EVF bracket (all included)
compatible-cameras	PYXIS 6K (EF/PL), URSA Cine 12K LF, URSA Cine 17K 65
operating-systems	MacOS Ventura 13+, Sonoma 14+, Windows 10/11
power-requirements	Powered via USB-C
environmental	Operating 0–40°C, Storage -20–60°C, Humidity 0–90%
whats-included	PYXIS Monitor, sunshade, swivel mount, fixed mount + screws, dovetail shoe + screws, URSA Cine EVF bracket, rotating bracket with 19mm rod, 2x short 15mm rods, USB-C cables (long/short), wallet with QR, sticker
