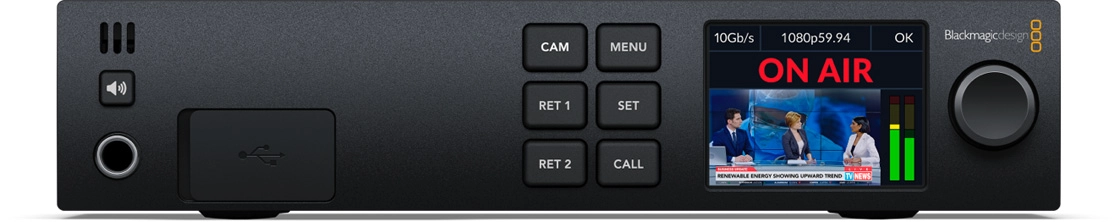

Blackmagic Studio Converter

Name: Blackmagic Studio Converter - Farabak
Price: 1055.00 USD
Availability: InStock

Technical Specifications

Description

With 10G Ethernet on the Blackmagic Studio Converter and Blackmagic Studio Camera Pro, all camera signals connect through a single Ethernet IP link.That means camera feed, return program feed, timecode, reference, tally, talkback, and control all travel down one cable — delivering the same benefits as SMPTE fiber, but at a fraction of the cost using standard 10G copper Ethernet.At the studio end, the Blackmagic Studio Converter breaks out all video, audio, and talkback connections. It also features a powerful integrated supply that delivers power to the camera over Ethernet, so there’s no need for a local power source at the camera.Blackmagic Studio Converter — all signals, one cable, total simplicity.

Price

1,055.00 USD

Category: Professional Cameras Brand: Blackmagic Design

Additional information

connections-sdi-video-inputs	2
connections-sdi-video-outputs	2
connections-sdi-monitor-outputs	1
connections-sdi-rates	1.5G, 3G, 6G, 12G
built-in-speaker	Mono
analog-audio-inputs	2 channel analog Program audio in supported via 9‑pin connector.
analog-audio-outputs	1 x 6.35 mm headphone jack.
sdi-audio-input	Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16. Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI.
sdi-audio-output	2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16.
timecode-connections	1 x BNC In, 1 x BNC Out.
reference-connections	1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
talkback-audio	SDI channels 13 and 14 for Engineering talkback. SDI channels 15 and 16 for Production talkback. RJ-45 Talkback connector for analog external talkback systems.
screen	2.2 inch LCD
ethernet	1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable. 1 x 1Gb/s for external control and software updates.
computer-interface	1 x USB-C.
hd-video-standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
ultra-hd-video-standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
sdi-compliance	SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
audio-sampling	Television standard sample rate of 48kHz and 24‑bit.
video-sampling	4:2:2
color-precision	10-bit
color-space	REC 709, REC 2020.
multiple-rate-support	SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
built-in-control-panel	7 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
external-control	RJ-45 1Gb/s Ethernet.
software-included	Camera Utility for firmware update.
operating-systems	Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
power-supply	1 x Internal 100 – 240V AC 50/60Hz.
power-usage	40 W max plus camera power usage.
optional-accessories	Blackmagic Universal Rack Shelf, Blackmagic Studio Camera 6K Pro, Blackmagic Studio Camera 4K Pro G2, Blackmagic Studio Camera 4K Pro.
operating-temperature	0° to 40° C (32° to 104° F)
storage-temperature	-20° to 45° C (-4° to 113° F)
relative-humidity	0% to 90% non-condensing
whats-included	Blackmagic Studio Converter
