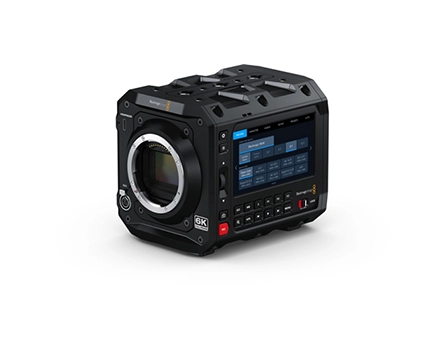

Blackmagic PYXIS 6K L-Mount is an advanced digital film camera with a versatile design that gives you the freedom to build the perfect rig for any production.It features a 6048 x 4032 full-frame HDR sensor with a built-in optical low-pass filter, delivering rich detail and cinematic color. With dual native ISO, you get stunning images in any lighting condition, while dual CFexpress media slots provide the speed and reliability needed for high-end production.The customizable body includes flexible mounting options and side plates, making it easy to adapt PYXIS to any workflow. And with its fixed L-Mount, the camera supports the latest full-frame lenses along with a wide range of adapters — opening up endless creative possibilities.Blackmagic PYXIS 6K L-Mount is more than a camera. It’s a foundation for building your ultimate digital film system.
3,295.00 USD
| effective-sensor-size | 36 x 24 mm (Full Frame) |
|---|---|
| pixel-pitch | 5.94 microns |
| lens-mount | Active L-Mount |
| lens-control | Iris and focus on supported lenses |
| dynamic-range | 13 stops |
| dual-native-iso | 400 and 3200 |
| shooting-resolutions | 6K Open Gate 6048×4032 up to 36 fps; 6K Anamorphic 4832×4032 up to 36 fps; 6K 16:9 6048×3408 up to 46 fps; 6K DCI 6048×3200 up to 48 fps; 6K 2.4:1 6048×2520 up to 60 fps; Super35 4:3 4096×3072 up to 50 fps; 4K 16:9 4096×2304 up to 60 fps; 4K DCI 4096×2160 up to 60 fps; Super16 16:9 2112×1184 up to 100 fps; 1080HD 1920×1080 up to 120 fps |
| frame-rates | Project 23.98–60 fps; off-speed up to 120 fps depending on resolution |
| focus | Autofocus with compatible lenses |
| iris-control | Wheel, touchscreen slider, auto iris button |
| screen | 4" LCD capacitive touchscreen, 1920×1080, 1500 nits |
| metadata-support | Auto lens data from L-Mount; records settings, motion sensor, slate data, LUT embedding |
| controls | Touchscreen menus, push buttons, 3 assignable keys |
| timecode-clock | Highly accurate, <1 frame drift per 8 hours |
| connections | 1x 12G-SDI, 1x USB-C (viewfinder), 1x mini XLR, 1x 3.5mm stereo input, 1x 3.5mm headphone, Tri-Sync/Timecode, USB-C, 1G Ethernet |
| standards | HD: 1080p23.98–60, 1080i50–60; UHD: 2160p23.98–60; SDI SMPTE standards |
| audio | Stereo mic, mono speaker |
| media | 2x CFexpress Type B, 1x USB-C (5Gb/s) external drive |
| media-format | ExFAT, HFS+ |
| supported-codecs | Blackmagic RAW 3:1–12:1, Q0–Q5; H.264 Proxy 1080p |
| external-control | Zoom/Focus Demand, iPad, Bluetooth, USB PTP, REST API over Ethernet |
| network-management | NTP, Web Media Manager, FTP, SMB |
| storage | 2x CFexpress, 1x USB-C external; storage rates vary by resolution (up to 370 MB/s in 6K Open Gate, 33 MB/s in 1080p) |
| recording-formats | BRAW 3:1–12:1, Q0–Q5 with proxy H.264; resolutions from 6K to 1080p with optional portrait metadata |
| software | Blackmagic OS, Resolve Studio, Camera Setup, RAW Player, QuickLook, RAW SDK, RAW Speed Test |
| operating-systems | MacOS Ventura 13+, Sonoma 14+, Windows 10/11 |
| power-supply | 12V DC 60W external PSU |
| external-power-input | 2-pin Lemo locking connector |
| battery-type | BP-U series |
| power | 11–19.5V |
| optional-accessories | URSA Cine Handle, URSA Cine EVF, PYXIS Rosette Plate, PYXIS Monitor, PYXIS Monitor Kit, PYXIS Monitor EVF Kit |
| environmental | Operating 0–40°C, Storage -20–45°C, Humidity 0–90% |
| whats-included | PYXIS 6K, dust cap, standard plate, SSD plate, 60W PSU with adapters, welcome booklet, Resolve Studio key |
