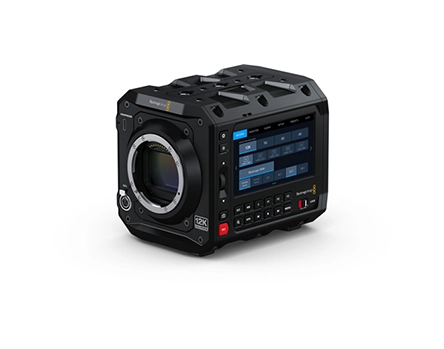

Blackmagic PYXIS 12K L-Mount is an advanced digital film camera with a remarkably versatile design — built to adapt to the needs of any production. It gives you the freedom to create the perfect camera rig, whether on set, in the studio, or on location.At its core is a groundbreaking 12,288 x 8040 full-frame RGBW sensor with a built-in optical low-pass filter, delivering stunning detail, natural color, and 16 stops of dynamic range. With dual CFexpress media slots, you can capture at the highest resolutions with confidence and speed.The customizable body includes flexible mounting options and side plates, allowing filmmakers to configure PYXIS for any workflow. And with its fixed L-Mount, the camera supports the latest full-frame lenses along with a wide range of adapters, opening up endless creative possibilities.Blackmagic PYXIS 12K L-Mount is more than just a camera — it’s a foundation for building the ultimate digital film system.
5,495.00 USD
| effective-sensor-size | 35.64 x 23.32 mm (Large Format) |
|---|---|
| pixel-pitch | 2.9 microns |
| lens-mount | Active L-Mount |
| lens-control | Iris and focus on supported lenses |
| dynamic-range | 16 stops |
| native-iso | 800 |
| shooting-resolutions | 12K (12288×8040, 12288×6912, 12288×6480, 12288×5112, 9648×8040); 9K (9408×6264, 8688×4896, 9312×4896, 9312×3864, 7680×6408); 8K (8192×5360, 8192×4608, 8192×4320, 8192×3408, 6432×5360); 4K (4096×2680, 4096×2304, 4096×2160, 4096×1704, 3216×2680) |
| frame-rates | 23.98–60 fps (project); max varies by resolution |
| high-frame-rates | Up to 112 fps (8K/4K 2.4:1); 90 fps (8K/4K 17:9); 84 fps (8K/4K 16:9); 72 fps (8K/4K open gate, 6:5); 80 fps (9K 2.4:1); 65 fps (9K 16:9/17:9); 50 fps (9K 3:2, 6:5); 60 fps (12K 2.4:1); 50 fps (12K 17:9); 45 fps (12K 16:9); 40 fps (12K open gate, 6:5) |
| focus | Autofocus with compatible lenses |
| iris-control | Wheel, touchscreen slider, auto iris button |
| screen | 4" LCD capacitive touchscreen, 1920×1080, 1500 nits |
| metadata-support | Auto lens data from L-Mount; records settings, motion sensor, slate data, LUT embedding |
| controls | Touchscreen menus, push buttons, 3 assignable keys |
| timecode-clock | Highly accurate, <1 frame drift per 8 hours |
| connections | 1x 12G-SDI, 1x USB-C (viewfinder), 1x mini XLR, 1x 3.5mm stereo input, 1x 3.5mm headphone, Tri-Sync/Timecode, USB-C, 10G Ethernet |
| standards | HD: 1080p23.98–60, 1080i50–60; UHD: 2160p23.98–60; SDI SMPTE standards |
| audio | Stereo mic, mono speaker |
| media | 2x CFexpress Type B, 1x USB-C external drive |
| media-format | ExFAT, HFS+ |
| supported-codecs | Blackmagic RAW 3:1–18:1, Q0–Q5; H.264 Proxy 1080p |
| external-control | Zoom/Focus Demand, iPad, Bluetooth, USB PTP, REST API over Ethernet |
| network-management | NTP, Web Media Manager, FTP, SMB |
| storage | 2x CFexpress, 1x USB-C external; 12K up to 1,433 MB/s; 9K up to 857 MB/s; 8K up to 639 MB/s; 4K up to 336 MB/s |
| recording-formats | BRAW 3:1–18:1, Q0–Q5 with proxy H.264; multiple resolutions from 12K to 4K |
| software | Blackmagic OS, Resolve Studio, Camera Setup, RAW Player, QuickLook, RAW SDK, RAW Speed Test |
| operating-systems | MacOS Sonoma 14+, Sequoia 15+, Windows 10/11 |
| power-supply | 18V DC 90W external PSU |
| external-power-input | 2-pin Lemo locking connector |
| battery-type | BP-U series |
| power | 12–18V |
| optional-accessories | URSA Cine Handle, URSA Cine EVF, PYXIS Rosette Plate, PYXIS Monitor, PYXIS Monitor Kit, PYXIS Monitor EVF Kit |
| environmental | Operating 0–40°C, Storage -20–45°C, Humidity 0–90% |
| whats-included | PYXIS 12K, dust cap, standard plate, SSD plate, 90W PSU with adapters, welcome booklet, Resolve Studio key |
