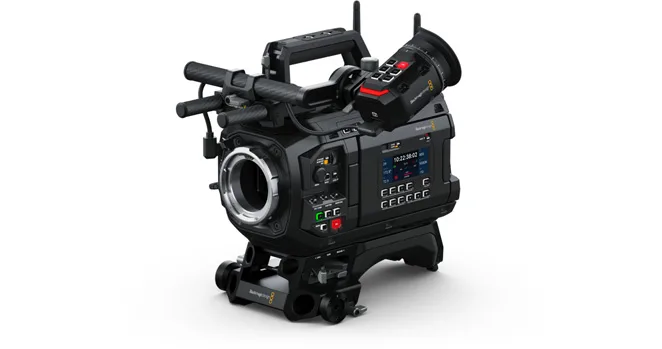

Blackmagic URSA Cine 12K LF + EVF

Name: Blackmagic URSA Cine 12K LF + EVF - Farabak
Price: 12095.00 USD
Availability: InStock

Technical Specifications

Description

Blackmagic URSA Cine 12K LF — large format. Limitless detail. The Blackmagic URSA Cine 12K LF is a breakthrough in digital cinema, featuring a new large-format 36 x 24mm RGBW sensor with larger photosites that deliver 16 stops of dynamic range and breathtaking cinematic imagery. This revolutionary design includes interchangeable lens mounts, a dedicated assist station with a second 5-inch HDR touchscreen, built-in ND filters, and industry-standard Lemo and Fischer connections for seamless professional integration. With a massive 8TB of removable high-performance media storage, 10G Ethernet, and Wi-Fi for fast uploads and Blackmagic Cloud syncing, plus compatibility with the URSA Cine EVF, it’s built for high-end, connected filmmaking. True large format. True dynamic range. True cinema.

Price

12,095.00 USD

Category: Professional Cameras Brand: Blackmagic Design

Additional information

effective-sensor-size	35.64mm x 23.32mm (Large Format)
pixel-pitch	2.9 microns
lens-mount	PL mount. Interchangeable with URSA Cine lockable EF mount included.
lens-control	Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses.
dynamic-range	16 Stops
shooting-formats	Multiple formats up to 12,288 x 8040 (12K) and 4096 x 1704 (4K 2.4:1)
frame-rates	23.98–60 fps, depending on resolution
high-speed-frame-rates	Up to 224 fps (4K 2.4:1)
built-in-nd-filters	Clear, 2-stop, 4-stop, 6-stop IR ND
focus	Peaking and autofocus (with compatible lenses)
iris-control	Manual and auto iris with touchscreen slider
screens	2 Monitoring Screens + 1 Camera Status + 1 EVF
monitoring-screen-resolution	1920×1080, 1500 nits, LCD capacitive touchscreen
evf-display	OLED, 1920×1080, 6.22 million dots, -5 to +5 diopter
metadata-support	i/Technology lens data and auto recording of scene/project info
controls	Touchscreen menus, 7 assignable shortcut keys, EVF shortcuts
timecode-clock	<1 frame drift every 8 hours
connections	2 SDI outputs, audio in/out, reference, USB-C, Ethernet
audio	Stereo mic + mono speaker
video-standards	Up to Ultra HD 2160p60
sdi-compliance	SMPTE 292M, 424B, 2081-1, 2082-1
sdi-audio-sampling	48kHz, 24-bit
media	1 x Blackmagic Media Module
codecs	Blackmagic RAW (3:1 to 18:1, Q0–Q5), H.264 proxy
external-control	REST API, WiFi, Ethernet, Bluetooth, 7-pin & 3-pin connectors
streaming	SRT, RTMP, via Ethernet/WiFi/USB-C
storage	Blackmagic Media Module 8TB
storage-rates	Up to 1,433 MB/s (12K Q0)
recording-formats	Blackmagic RAW + H.264 proxy combinations
software-included	URSA Cine OS, DaVinci Resolve Studio, RAW Player, SDK
operating-systems	macOS 14+, Windows 10/11
power-supply	+24V DC, B-Mount battery plate
power-output	+12V regulated, +24V DC outputs
optional-accessories	URSA Cine EVF, PYXIS Monitor, Battery Plates, etc.
operating-temperature	0° to 40°C
storage-temperature	-20° to 45°C
relative-humidity	0–90% non-condensing
whats-included	Camera, Media Module 8TB, EVF, Handle, Baseplate, Power Supply, etc.
