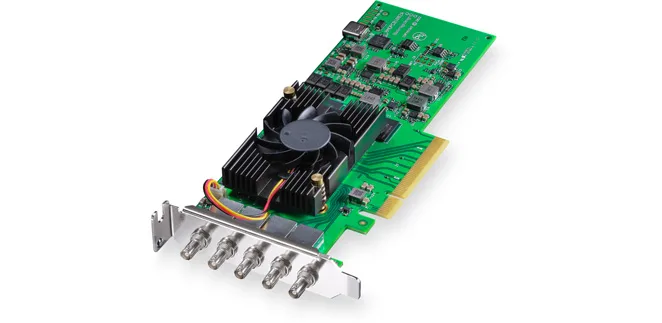

DeckLink 8K Pro Mini is the ultimate low-profile capture and playback card for next-generation digital cinema. With four independent 12G-SDI Micro BNC connections, it supports every format — from SD and HD to Ultra HD, 4K DCI, 8K, and 8K DCI. Enjoy high frame rates, 12-bit RGB 4:4:4, and full Rec. 2020 color, delivering breathtaking resolution and HDR workflows without compromise. DeckLink 8K Pro Mini — compact design, cinematic power.
765.00 USD
| connections-sdi-video-inputs | 4 x bi-directional 12G-SDI Micro BNC; supports SD/HD/2K/4K/8K; single/dual/quad link 4:2:2/4:4:4; 2D/3D switchable |
|---|---|
| connections-sdi-video-outputs | 4 x bi-directional 12G-SDI Micro BNC; supports SD/HD/2K/4K/8K; single/dual/quad link 4:2:2/4:4:4; 2D/3D switchable |
| connections-sdi-audio-inputs | 16 ch embedded in SD/HD/2K; 64 ch embedded in 4K/8K |
| connections-sdi-audio-outputs | 16 ch embedded in SD/HD/2K; 64 ch embedded in 4K/8K |
| connections-sync-input | Tri-Sync or Black Burst |
| connections-computer-interface | PCIe Gen3 x8; compatible with x8/x16 slots |
| supported-codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC/PAL, DVCPRO50/HD, DPX, HDV, HEVC, XDCAM EX/HD/HD422, DNxHR/DNxHD, Apple ProRes (4444/422 HQ/422/422 LT/422 Proxy), Uncompressed 8/10-bit 4:2:2, Uncompressed 10-bit 4:4:4 |
| software-included | DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, Blackmagic driver (Mac/Windows/Linux) |
| software-internal-software-upgrade | Firmware built into driver; loads upgrades at startup or via updater |
| physical-installation | Low profile PCIe Gen3 x8; compatible with x8/x16 slots; Mac/Windows/Linux |
| software-applications-direct | DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Avid Pro Tools, Steinberg Cubase, Autodesk Flame, Adobe Photoshop |
| software-applications-other | Steinberg Nuendo, OBS Studio, vMix, Nuke, Edius X, Sony Catalyst, Tools On Air, Softron, Wirecast, Resolume, Vegas, Corel VideoStudio, PowerDirector, VidblasterX, CasparCG, Magicsoft CG, Xsplit, DevTek, Metus Ingest, MimoLive, Cinegy Capture Pro, ProPresenter, Ventuz, Class X, Glookast, NEMO3D, TouchDesigner, Scratch/Live Assist, WebClip2Go/[REC]Marker, NewBlue Titler, SGO Mistika, Zoom |
| video-standards-sd | 525i59.94 NTSC, 625i50 PAL |
| video-standards-hd | 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60/95.90/96/100/119.88/120; 1080PsF23.98/24/25/29.97/30 |
| video-standards-2k-dci | 2Kp23.98/24/25/29.97/30/47.95/48/50/59.94/60/95.90/96/100/119.88/120 DCI; 2KPsF23.98/24/25/29.97/30 DCI |
| video-standards-ultra-hd | 2160p23.98/24/25/29.97/30/47.95/48/50/59.94/60/95.90/96/100/119.88/120 |
| video-standards-4k-dci | 4Kp23.98/24/25/29.97/30/47.95/48/50/59.94/60/95.90/96/100/119.88/120 DCI |
| video-standards-8k | 4320p23.98/24/25/29.97/30/47.95/48/50/59.94/60 |
| video-standards-8k-dci | 8Kp23.98/24/25/29.97/30/47.95/48/50/59.94/60 DCI |
| 3d-sdi-video-standards | 720p50/59.94/60; 1080p23.98–120; 1080PsF23.98–30; 1080i50/59.94/60; 2Kp23.98–120 DCI; 2KPsF23.98–30 DCI; 4Kp23.98–120 DCI; 2160p23.98–120 |
| sdi-compliance | SMPTE 259M, 274M, 292M, 296M, 372M, 424M, 425M, 2036‑1, 2048‑1, 2081‑10/11/12, 2082‑10/11/12, ST2108‑1 |
| sdi-metadata-support | RP 188/SMPTE 12M‑2, closed captioning |
| audio-sampling | 48 kHz, 24‑bit |
| sdi-video-sampling | 4:2:2, 4:4:4 |
| sdi-color-precision | 8/10/12‑bit RGB 4:4:4 up to 8Kp30 DCI; 8/10‑bit YUV 4:2:2 in all modes |
| color-space | REC 601, REC 709, REC 2020 |
| hdr-support | HDR static metadata packing, HLG, PQ |
| multiple-rate-support | Switchable between SD/HD/2K/4K/8K |
| processing-colorspace-conversion | Hardware real time on output |
| processing-3d-processing | Left/right eye dual stream capture & playback |
| processing-real-time-effects | DaVinci Resolve, Final Cut Pro, Premiere Pro CC, Avid Media Composer |
| operating-systems | Mac 14.0 Sonoma; Mac 15.0 Sequoia or later; Windows 10/11; Linux |
| power-consumption | 18 W |
| environmental-operating-temperature | 5° to 50° C (41° to 122° F) |
| environmental-storage-temperature | -20° to 60° C (-4° to 140° F) |
| environmental-relative-humidity | 0% to 90% non‑condensing |
| whats-included | DeckLink 8K Pro Mini; Welcome wallet with QR code |
