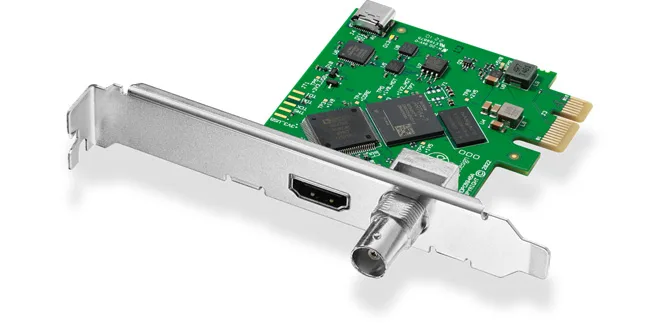

DeckLink Mini Monitor HD delivers broadcast-quality playback and monitoring for PCIe computers. With 3G-SDI and HDMI 2.0 outputs, you can connect to any television, monitor, or projector — with full support for the latest HDR formats.Compatible with DaVinci Resolve, Final Cut Pro, and more, it’s the perfect solution for professional editing and grading.DeckLink Mini Monitor HD — professional monitoring, simplified.
145.00 USD
| connections-sdi-video-inputs | 1 x 10-bit SD/HD/Ultra HD switchable. |
|---|---|
| connections-sdi-audio-inputs | 16 channels embedded in SD, HD, Ultra HD. |
| connections-hdmi-video-inputs | 1 x HDMI 2.0a connector. |
| connections-hdmi-audio-inputs | 8 Channels embedded in SD, HD, Ultra HD. |
| connections-computer-interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots., PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots. |
| supported-codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2., AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
| software-included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver (Mac, Windows, Linux). |
| internal-software-upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| physical-installation | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots (Mac, Windows, Linux)., PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots (Mac, Windows, Linux). |
| software-applications | DaVinci Resolve, Adobe Premiere Pro CC, Avid Media Composer, Adobe Photoshop CC, and other third party apps (Wirecast, vMix, OBS, etc.)., DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC, and other apps (Nuke, Edius, Vegas Pro, OBS, Wirecast, vMix, Flame, Zoom, etc.)., Wirecast, vMix, OBS, and others (Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go, [REC]Marker, Zoom)., DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC, plus others (Nuke, Catalyst, Wirecast, vMix, OBS, ProPresenter, TouchDesigner, Mistika, etc.). |
| video-standards-sd | 525i59.94 NTSC, 625i50 PAL |
| video-standards-hd | 720p50/59.94/60; 1080p23.98–60; 1080PsF23.98–30; 1080i50/59.94/60 |
| video-standards-2k-sdi | 2K DCI 23.98p, 24p, 25p; 2K DCI 23.98PsF, 24PsF, 25PsF |
| video-standards-ultra-hd | 2160p23.98, 24, 25, 29.97, 30 |
| video-standards-4k-dci | 4K DCI 23.98p, 24p, 25p |
| sdi-compliance | SMPTE 259M, 292M, 296M, 372M, 425M, 2081, ITU-R BT.656, ITU-R BT.601, SMPTE 259M, 274M, 296M, 424M, 425M A/B, SMPTE 259M, 274M, 296M, 424M, 425M A/B, ST2108-1 |
| sdi-metadata-support | RP 188/SMPTE 12M-2 and closed captioning. |
| audio-sampling | 48 kHz, 24 bit |
| sdi-video-sampling | 4:4:4 & 4:2:2, 4:2:2, 4:4:4 |
| sdi-color-precision | 8, 10, 12-bit RGB 4:4:4 up to 1080p60; 8, 10-bit YUV 4:2:2 all modes, 8, 10, 12-bit RGB 4:4:4 up to 1080p30; 8, 10-bit YUV 4:2:2 in all standards. |
| color-space | REC 601, REC 709, REC 2020 |
| sdi-hdr-support | HDR static metadata packing, HLG, PQ, HDR metadata packing, HLG and PQ transfer characteristics. |
| hdmi-video-sampling | 4:4:4, 4:2:2, 4:2:0, 4:2:2, 4:4:4, 4:2:2 and 4:4:4 |
| hdmi-configuration | HDMI 2.0a, Deep Color, HDR, HDMI 2.0a, Deep Color, HDR, auto-configures to connected display, HDMI 2.0 supports Deep Color., HDMI 2.0 supports Deep Color and HDR. Auto-configures to connected display. |
| hdmi-color-precision | Up to 12-bit (Deep Color), 8-bit RGB 4:4:4, 8-bit YUV 4:4:4, 12-bit YUV 4:2:2, 10, 12-bit RGB 4:4:4 up to 1080p30; 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards. |
| hdmi-hdr-support | HDR static metadata packing, HLG, PQ, HDR metadata packing, HLG and PQ transfer characteristics. |
| multiple-rate-support | HDMI and SDI switchable between SD/HD/2K/4K |
| copy-protection | HDMI input cannot capture from copy protected sources., HDMI input cannot capture from copy protected HDMI sources. |
| processing-colorspace-conversion | Hardware based real time. |
| processing-hd-to-sd-down-conversion | Software based down conversion during capture., Software based down conversion during playback. |
| processing-hd-up-conversion | High quality software up converter from SD to HD (16:9 Zoom or anamorphic). |
| operating-systems | Mac 14.0 Sonoma / 15.0 Sequoia or later; Windows 10/11 64-bit; Linux |
| power-consumption | 8 W, 10 W, 3 W |
| environmental-operating-temperature | 5° to 40° C (32° to 104° F) |
| environmental-storage-temperature | -20° to 45° C (-4° to 113° F) |
| environmental-humidity | 0% to 90% non-condensing |
| whats-included | DeckLink Mini Recorder 4K, Low profile slot bracket, DeckLink Mini Monitor 4K, Low profile slot bracket, DeckLink Mini Recorder HD, Low profile slot bracket, DeckLink Mini Monitor HD, Low profile slot bracket |
| connections-sdi-video-outputs | 1 x 10 bit SD/HD/Ultra HD switchable. |
| connections-sdi-audio-outputs | 16 channels embedded in SD, HD, Ultra HD. |
| connections-hdmi-video-outputs | 1 x HDMI 2.0a connector. |
| connections-hdmi-audio-outputs | 8 Channels embedded in SD, HD, Ultra HD. |
| hdmi-resolution | Pixel for pixel HD resolution output to connected device. |
| processing-hd-cross-conversion | Software based cross conversion from 720p to 1080HD on playback. |
| processing-real-time-effects | DaVinci Resolve, Final Cut Pro X effects, Premiere Pro Mercury Engine effects, Avid Media Composer effects., DaVinci Resolve, Final Cut Pro internal effects; Premiere Pro Mercury Engine; Avid Media Composer. |
| connections-sdi-video-input | 1 x 10-bit SD/HD switchable |
| connections-sdi-rates | 270Mb, 1.5G, 3G |
| connections-sdi-audio-input | 16 channels embedded in SD/HD |
| connections-hdmi-video-input | 1 x HDMI 2.0 type A connector |
| connections-hdmi-audio-input | 8 channels embedded in SD/HD |
| sdi-video-standards-sd | 525i59.94 NTSC, 625i50 PAL |
| sdi-video-standards-hd | 720p50/59.94/60; 1080p23.98–60; 1080PsF23.98–30; 1080i50/59.94/60 |
| sdi-video-standards-2k | 2Kp23.98–60 DCI; 2KPsF23.98–30 DCI, 2Kp23.98/24/25/29.97/30/50/59.94/60 DCI; 2KPsF23.98/24/25/29.97/30 DCI |
| sdi-audio-sampling | 48 kHz, 24-bit |
| sdi-color-space | REC 601, REC 709, REC 2020 |
| multiple-rate-support-sdi | Switchable between SD and HD |
| hdmi-video-standards-sd | 525i59.94 NTSC, 625i50 PAL |
| hdmi-video-standards-hd | 720p50/59.94/60; 1080p23.98–60; 1080i50/59.94/60 |
| hdmi-audio-sampling | 48 kHz, 24-bit, 48 kHz, 24 bit |
| hdmi-color-space | REC 601, REC 709, REC 2020 |
| multiple-rate-support-hdmi | Switchable between SD and HD |
| hardware-frame-buffer | v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB). |
| connections-sdi-video-output | 1 x 10-bit SD/HD switchable |
| connections-sdi-audio-output | 16 channels embedded in SD/HD |
| connections-hdmi-video-output | 1 x HDMI 2.0 type A connector |
| connections-hdmi-audio-output | 8 channels embedded in SD/HD |
