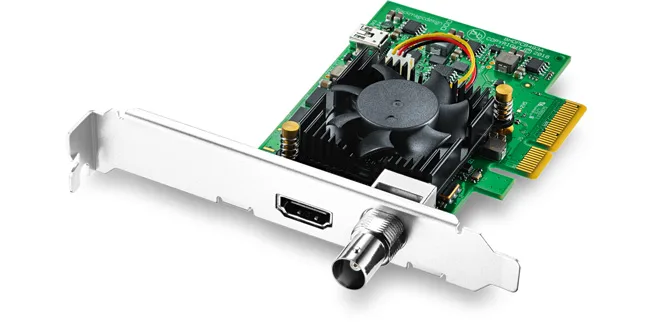

DeckLink Mini Recorder 4K is a low-profile PCIe capture card with 6G-SDI and the latest HDMI 2.0a connections, letting you record all formats up to 2160p30 directly to your computer. Its SDI and HDMI inputs auto-detect and switch between formats, with full support for HDR recording and metadata over HDMI. Perfect for mobile live capture, broadcast trucks, and more. You can even build custom capture solutions with the Blackmagic Desktop Video SDK for Mac, Windows, and Linux. Includes full-height and low-profile PCIe shields for maximum flexibility. DeckLink Mini Recorder 4K — compact size, uncompromising capture.
215.00 USD
| connections-sdi-video-inputs | 1 x 10-bit SD/HD/Ultra HD switchable. |
|---|---|
| connections-sdi-audio-inputs | 16 channels embedded in SD, HD, Ultra HD. |
| connections-hdmi-video-inputs | 1 x HDMI 2.0a connector. |
| connections-hdmi-audio-inputs | 8 Channels embedded in SD, HD, Ultra HD. |
| connections-computer-interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
| supported-codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2. |
| software-included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver (Mac, Windows, Linux). |
| internal-software-upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| physical-installation | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots (Mac, Windows, Linux). |
| software-applications | DaVinci Resolve, Adobe Premiere Pro CC, Avid Media Composer, Adobe Photoshop CC, and other third party apps (Wirecast, vMix, OBS, etc.). |
| video-standards-sd | 525i59.94 NTSC, 625i50 PAL |
| video-standards-hd | 720p50/59.94/60; 1080p23.98–60; 1080PsF23.98–30; 1080i50/59.94/60 |
| video-standards-2k-sdi | 2K DCI 23.98p, 24p, 25p; 2K DCI 23.98PsF, 24PsF, 25PsF |
| video-standards-ultra-hd | 2160p23.98, 24, 25, 29.97, 30 |
| video-standards-4k-dci | 4K DCI 23.98p, 24p, 25p |
| sdi-compliance | SMPTE 259M, 292M, 296M, 372M, 425M, 2081, ITU-R BT.656, ITU-R BT.601 |
| sdi-metadata-support | RP 188/SMPTE 12M-2 and closed captioning. |
| audio-sampling | 48 kHz, 24 bit |
| sdi-video-sampling | 4:4:4 & 4:2:2 |
| sdi-color-precision | 8, 10, 12-bit RGB 4:4:4 up to 1080p60; 8, 10-bit YUV 4:2:2 all modes |
| color-space | REC 601, REC 709, REC 2020 |
| sdi-hdr-support | HDR static metadata packing, HLG, PQ |
| hdmi-video-sampling | 4:4:4, 4:2:2, 4:2:0 |
| hdmi-configuration | HDMI 2.0a, Deep Color, HDR |
| hdmi-color-precision | Up to 12-bit (Deep Color) |
| hdmi-hdr-support | HDR static metadata packing, HLG, PQ |
| multiple-rate-support | HDMI and SDI switchable between SD/HD/2K/4K |
| copy-protection | HDMI input cannot capture from copy protected sources. |
| processing-colorspace-conversion | Hardware based real time. |
| processing-hd-to-sd-down-conversion | Software based down conversion during capture. |
| processing-hd-up-conversion | High quality software up converter from SD to HD (16:9 Zoom or anamorphic). |
| operating-systems | Mac 14.0 Sonoma / 15.0 Sequoia or later; Windows 10/11 64-bit; Linux |
| power-consumption | 8 W |
| environmental-operating-temperature | 5° to 40° C (32° to 104° F) |
| environmental-storage-temperature | -20° to 45° C (-4° to 113° F) |
| environmental-humidity | 0% to 90% non-condensing |
| whats-included | DeckLink Mini Recorder 4K, Low profile slot bracket |
