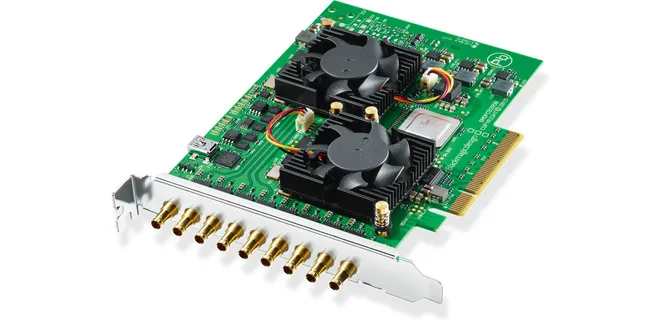

DeckLink Quad 2 packs eight independent 3G-SDI mini DIN connections into a single PCIe card, giving you unmatched flexibility for capture and playback. Fully compatible with the previous 4-channel model, it expands with four additional channels — letting you configure up to eight inputs, eight outputs, or any mix in between. Each connector can be set to capture or playback independently, in SD and HD formats up to 1080p60. DeckLink Quad 2 — eight channels, total freedom.
1,095.00 USD
| sdi-video-inputs | 8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD. |
|---|---|
| sdi-video-outputs | 8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD. |
| sdi-audio-inputs | 16 channels embedded in SD and HD. |
| sdi-audio-outputs | 16 channels embedded in SD and HD. |
| supported-codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
| software-included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| internal-software-upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| physical-installation | PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. |
| software-applications | DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC, and others. |
| video-standards | SD: 525i59.94 NTSC, 625i50 PAL. HD: 720p50, 720p59.94, 720p60, 1080p23.98–60, 1080PsF23.98–30, 1080i50, 1080i59.94, 1080i60. |
| sdi-compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. |
| sdi-metadata-support | RP 188/SMPTE 12M-2 and closed captioning. |
| audio-sampling | Television standard sample rate of 48 kHz and 24 bit. |
| sdi-color-precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. |
| sdi-video-sampling | 4:2:2, 4:4:4. |
| color-space | REC 601, REC 709, REC 2020. |
| hdr-support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| processing | Colorspace Conversion: Hardware based real time. HD Down Conversion: Built in software down converter on playback and capture. HD Up Conversion: Built in software up converter from SD to HD on input. Cross Conversion: Hardware cross conversion from 720HD to 1080HD and vice versa. Real Time Effects: Supported in major NLEs. |
| operating-systems | Mac 14.0 Sonoma, Mac 15.0 Sequoia or later; Windows 10 (64-bit), Windows 11; Linux. |
| power-consumption | 22 W. |
| environmental-specifications | Operating Temp: 5° to 40° C. Storage Temp: -20° to 45° C. Humidity: 0% to 90% non-condensing. |
| whats-included | DeckLink Quad 2. |
