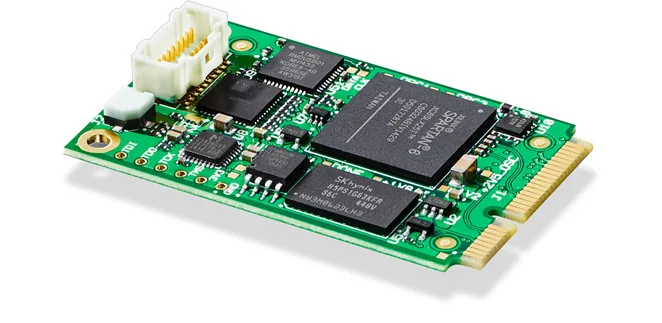

DeckLink Micro Recorder is a miniature, low-latency video capture card for all SD and HD formats up to 1080p30. Designed for computers with a 1-lane Gen 1 Mini PCIe slot, it adds SDI or HDMI inputs via built-in Hirose® and Molex® connectors. DeckLink Micro Recorder — compact size, broadcast power.
165.00 USD
| connections-pcie | PCIx1 Gen 1; PCI Express® Mini Card Electromechanical Specification. Note: HDMI connector height (8.0mm) exceeds 3.0mm spec. |
|---|---|
| standards-sd-format-support | 525i/59.94 NTSC, 625i/50 PAL. |
| standards-hd-format-support | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30. |
| video-sampling | 4:2:2 |
| color-precision | 8, 10-bit YUV 4:2:2 |
| compliance | SMPTE 259M, 292M, 296M, and HDMI |
| part-numbers-decklink-micro-recorder | Order code: BDLKMICROREC |
| part-numbers-hdmi-cable | Order code: CABLE-BDLKMIR/HDMI |
| part-numbers-sdi-cable | Order code: CABLE-BDLKMIR/SDI |
| operating-systems | Mac 14.0 Sonoma / 15.0 Sequoia or later; Windows 10/11 64-bit; Linux |
| power-consumption | 3 W max |
| environmental-operating-temperature | -25°C to 55°C (-13°F to 131°F) |
| environmental-storage-temperature | -40°C to 75°C (-40°F to 167°F) |
| environmental-humidity | 0% to 90% non-condensing |
| whats-included | DeckLink Micro Recorder |
